Description

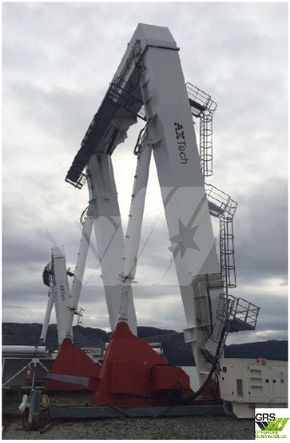

A-frame comes with 150T AHC systems. The In-Line Active Heave Compensation system is a linear, cylinder based design, utilizing cylinders to compensate for vertical vessel movements within specifications.

Capacity 250 mT (with AHC system 150mT)
Year of manufacture 2010
Manufacturer AxTech
Overall width 18 meter
Total height 22 meter
Free height (light opening) 19.2 meter
A-frame lifting height 16.6 meter
Approx total weight 180 ton
Hydraulic pressure 280 bar
Hydraulic supply Max. 1000 l/min
Speed full stroke Approx. 300 seconds
Condition Very good
Sales terms “As is, where is”

Note:
HPU is not included.
Deck sheaves from winch to A-frame is not included
Control system for the A-frame is not included

Built in year 2010

AF installed with a max lifting capacity of 250 tons
AF installed with a max lifting capacity of 150 tons
