All Drilling Rig Commercial Vessels for sale
LIFT BOATS - JACK UPS go to > www.horizonship.com
NEW UNUSED JACK UP RIG
OPEN TO OFFERS
Rig Type:
Unit/Design: Letourneau Super 116-E
Unit Flag: India
Port of Registry: Mumbai
Unit Classifications: ABS & IRS
IMO Classification: yes/no Yes
Which Code Version: MODU Code 2006
Year of Construction: 2012
Construction Yard: Bharati Shipyard Limited
Usgaon, Dabhol, Maharashtra
A.1 MAIN DIMENSIONS & TECHNICAL SPECS
Maximum Loaded Displacement 27,064 KIPS
Maximum Variable Deck Load 2,303 MT
Draft at loadline (deepest) 16.9 feet
Overall Length of unit 295.58 fe... read more
| Year: | 2012 |
| Length: | 295' |
| Location: | Florida USA |
View Details | |
Classification DNV
Water depth 3,650 m (12,000 ft)
Drilling depth 12,000 m (40,000 ft)
LOA (Length) 99 m
Breadth 75 m (at waterline)
Depth 24.5m
Scantling draft 15.0m
Displacement 55,800 – 60,000 at 12.5m draft
Variable drilling load 20,000 mT
Compensated Gross Tonnage 38,504 mT
Diesel engines 8 x 5,535 kW
Thrusters 8 x 3,800 kW
Station keeping DP3
Living quarters 150 persons
Helicopter deck Sikorsky S92 and S-61N, Superpuma AS332L2, EC225 and EH-101
Deck cranes 2 ea, max capacity: 100 mt at 15m
Mud storage 2,850 m3
Mud pit volume 900 m3
Drill wat... read more
| Year: | 2016 |
| Length: | 99m |
| Location: | China |
View Details | |
NB RESALE 400ft Jack-up Drilling Platform
Built :2016 China
Class :ABS
Inspection Place :China
Delivery time :Promptly
Principal Particular
L.o.a :231 ft
B.o.a :249 ft
Depth :31 ft
Leg length :547 ft
Crew :150 man
Environmental Operation Limits
Water depth :400 ft
Wave height :56 ft... read more
| Year: | 2016 |
| Length: | 231' |
| Location: | Shanghai China |
View Details | |
NB RESALE 300ft Jack-up Drilling Platform
Built :2016 China
Class :ABS
Inspection Place :China
Delivery time :Promptly
Principal Particular
L.o.a :59.745 m
B.o.a :55.78 m
Depth :7.62 m
Leg length :125.3 m
Crew :110 man
Environmental Operation Limits
Water depth :91.44 m
Wave height :15.24 m
... read more
| Year: | 2016 |
| Length: | 59m |
| Location: | Shandong China |
View Details | |
Gulf Driller V, the Super M2 Self-Elevating Drilling Vessel consists of a modified triangular hull with three (3) triangular truss work legs each fitted with spud cans at their lower ends. The modified triangular hull is 59.745m long, 55.78m wide, and 7.62m deep at the side. The three (3) legs are spaced with the forward leg on the centerline of the vessel and the two after legs 35.055m aft and 18.3m outboard of the centerline of the forward leg. The spud cans which form the lower segments of each leg are 12.09m in diameter and 4.57m high. The drilling depth is 30,000ft. The quarters house is ... read more
| Length: | 59.74m |
| Location: | China |
View Details | |
Drilling LeTourneau Class 116-C (1980) $5,500,000
243ft x 200ft x 26ft. Total Leg Length: 410ft. Maximum Water: 300ft. GRT/NRT: 6189 / 1856. The rig has an octagonal Helideck of 23 meters. CAP437 compliant, located on the bow of the rig. Capable of handling Sikorsky S-61, S-92 and Euro copter Super Puma. 136 single men cabins. Operating Conditions: Wave: 10 meters, Wind: 50 kts. Storm Condition: Significant wave: 23 meters, Wind: 83 knots, Surface current: 2 knots. Constructed: 1984 Dunkerque France, Completely Refurbished in 2013, the rig proposed a high standard accommodations up to 136 POB.... read more | Year: | 1984 |
| Length: | 75m |
| Location: | UAE |
| Price: | $5,500,000 |
View Details | |

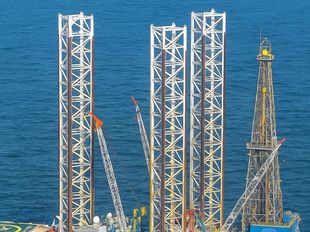

300ft Jack-up Drilling Unit $7,000,000
Design: Modec 300 C-38. Year Built / Last Upgrade: 1982 /2014. Legs (3): 405ft long triangular legs. Quarters capacity: 150 persons. Maximum Water Depth: 300ft. Cantilever Envelope: 50ft by 30ft. Maximum Variable Load (drilling): Approx. 4,500 kips. Capable to perform extensive offline activities including making up tubular stands off the critical path, offline cementing and offline wireline logging. Capable to jack up/down with full preload.... read more | Year: | 1982 |
| Length: | 67.6m |
| Location: | Malaysia |
| Price: | $7,000,000 |
View Details | |
Drilling MLT-116C 300ft (2004) $4,000,000
Upgraded in 2004. Water depths from 29 to 300 ft. Drilling Depth rating; 20,000. Three (3) drilling mud pumps. 3,000 HP drawworks. Top drive, Varco TDS-4. Quarters for 100 personnel.... read more | Year: | 1982 |
| Length: | 91.44m |
| Location: | South Africa |
| Price: | $4,000,000 |
View Details | |
