Description

Construction stages of the OSV at the shipyard: 99% (sea trial completed)
Capacities
Deck Cargo: 500 MT
Cement: 100.00 m³
Fuel Oil: 573.30 m³
Lubrication Oil: 8.00 m³
Fresh Water: 673.50 m³
Ballast Water / Drill Water: 479.90 m³

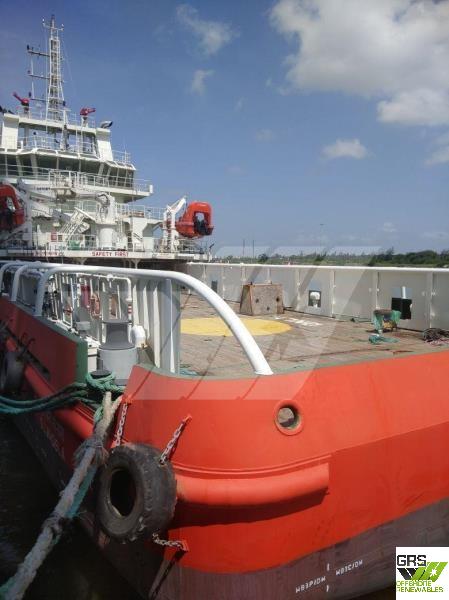

Open Deck Area: 330 m²

Main Engine
·Type: YANMAR 6EY26
·MCR (Maximum Continuous Rating): 1,920 kW x 750.0 RPM
·NCR (Normal Continuous Rating): 1,632 kW x 710.5 RPM
Service Speed
·Speed: 12.5 knots
Bulk Handling System
·Air Compressor: 6 m³/h
·Cement Tanks: 4 x 25 m³
Water Ballast / Drill Water System
·System: Two (2) Main Lines
·Pump: 2 Sets x 200 m³/h
Power Supply
·Main Diesel Generators: 2 Sets x 280 kW
·Emergency Generator: 1 Set x 90 kW
Propulsion & Steering
·Propulsion System: Berg CPP System

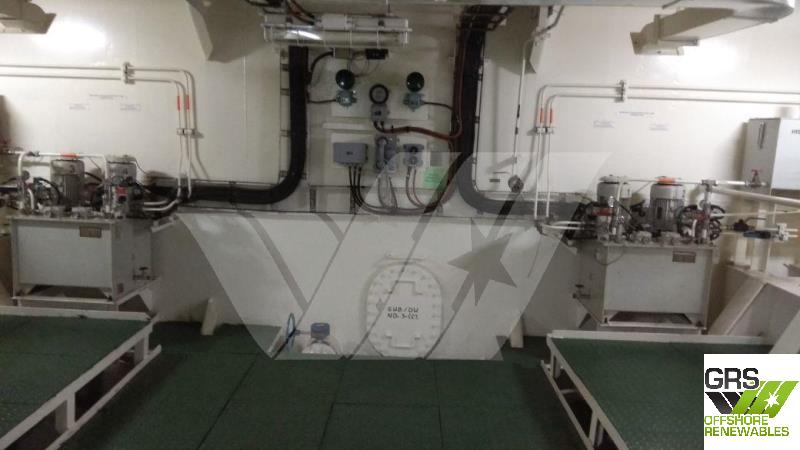

·Steering: 2 x Timon Flap Rudder with Electro Hydraulic Rotary Vane Steering Gear
·Bow Thrusters: HRP 4008 TT, 2 x 350 kW
·Stern Thruster: HRP 4008 TT, 1 x 350 kW
External Fire Fighting
·System: Agni-1
·Pumps: 2 Sets x 1,500 m³/h
·Monitors: 120 m Throw Length
Rescue Class
Class: UKOOA ERRV Group C

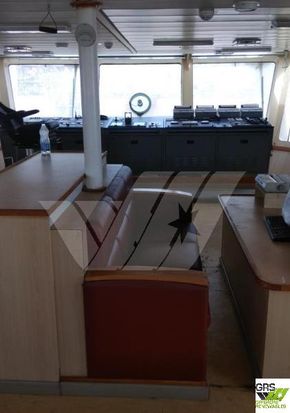

Navigation Equipment
·Radar Plant: 2 Units
·AIS: 1 Unit
·Auto Pilot / Gyro Compass: 1 Unit
·GMDSS: 1 Unit
Complement
·Capacity: 28 Persons
LOA 59 m
Beam 15 m
Draft 5 m

Built in year 2025
Class : Indian Register of Shipping
Flag : India
Gross Tonnage of 1.900

Free Deck area about 330m²
Fire Fighting System installed
Deadweight : 2.500 metric tonnes

Total 28 berths

Speed : 12,5 knots
Engines : 2 x Yanmar / Yanmar Diesel Engine Co Ltd 6EY26, 3.680 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 MAN 300 kw, Bowthruster + No Sternthruster (2 Bow Tunnel thruster)

Specifications

Engine(s)

2 x 3.680 kw, 750 rpm, Yanmar / Yanmar Diesel Engine Co Ltd 6EY26,
Propellers: 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
