Description

GRS is holding Sellers Price Ideas - pls call GRS.

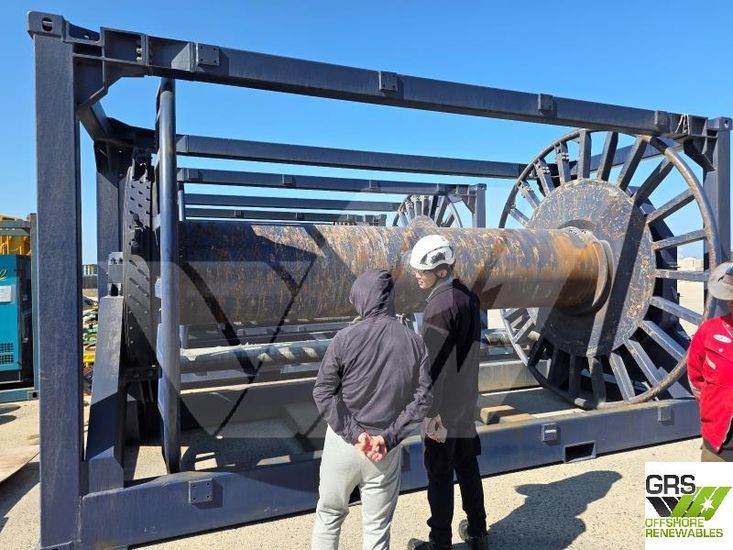

Winch fabricated and delivered on April 2025

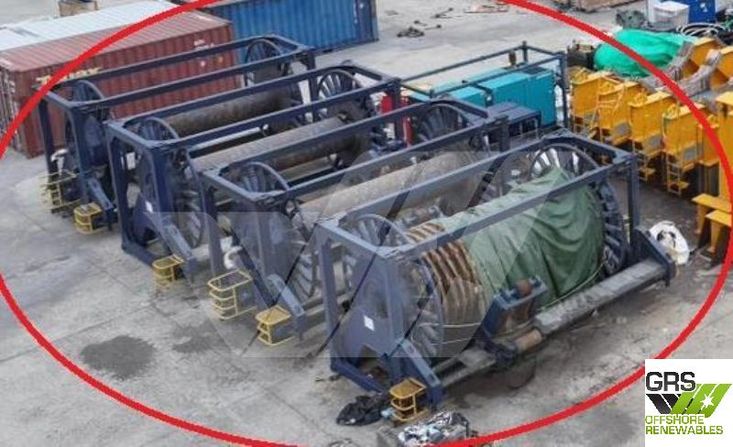

QUANTITY: 4
GROSS WEIGHT: 17 tons
Dimensions (L*B*H): 6058 x 2437 x 2667 mm

Maker: Lingjack Machinery
Model: LJDM-HRW10T

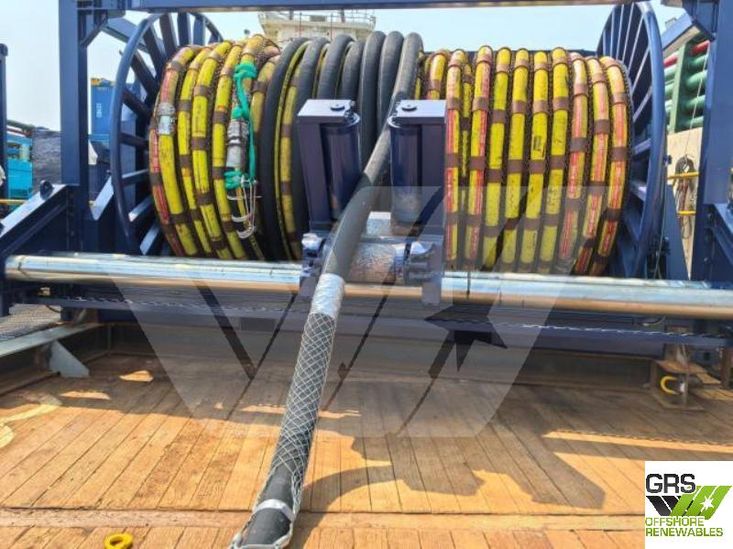

Drum Capacity: 1200m of 4" Hose (8 layers)
Medium: Compressed Air, Max 20bar
Connection: Inlet / Outlet NPT 4"
Rated Pull @ 1st layer: 30T @1.2 RPM (Low Speed), 15T @1.8 RPM (High Speed)
Brake: 45T
Power Required: 30 KW, 250bar @ 60LPM
Weight: Approx. 17T without Hose
LOA 6.06 m
Beam 2.44 m
